Precision Flow Test Models

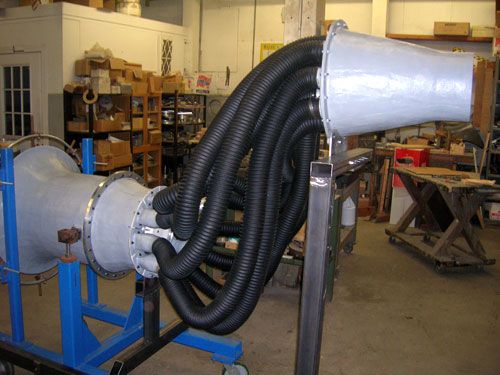

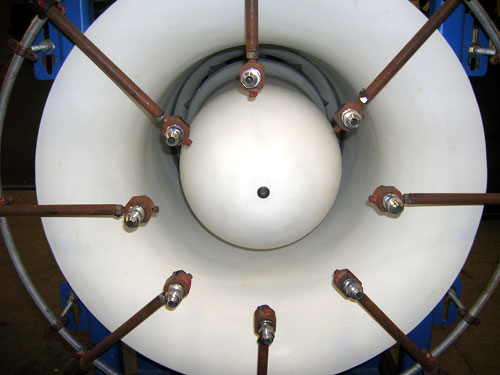

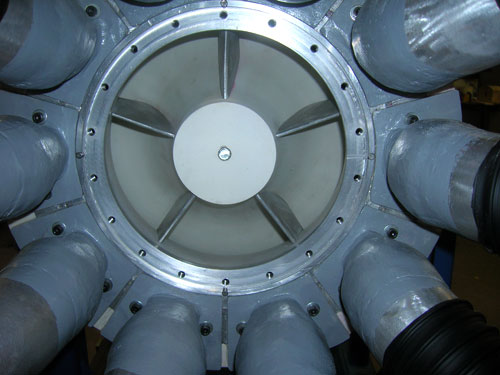

Fiberglas laminate and aluminum flow test model. Flow area designed by customer-United designed and fabricated
model to meet test requirements.
Fiberglas laminate and aluminum flow test model. Flow area designed by customer-United designed and fabricated model to meet test requirements
Enlarge
Fiberglas laminate and aluminum flow test model. Flow area designed by customer-United designed and fabricated model to meet test requirements
Enlarge
Fiberglas laminate and aluminum flow test model. Flow area designed by customer-United designed and fabricated model to meet test requirements
Enlarge

Fabricating Flow Test Models

When your computer design concept needs to be tested, United Industries can fabricate a precision test model to your specifications from materials as varied as your requirements. A specialty of United is fabricating and testing Precision Flow Test Models (models that blow or extract). From space age alloys, to custom molded or laminated epoxy and acrylics... we can fill all of your requirements.

United can also provide installation of pressure and temperature measuring instrumentation performed in house by our technicians, such as:

  • Pressure Rakes
  • Static Pressure Taps
  • Thermocouples

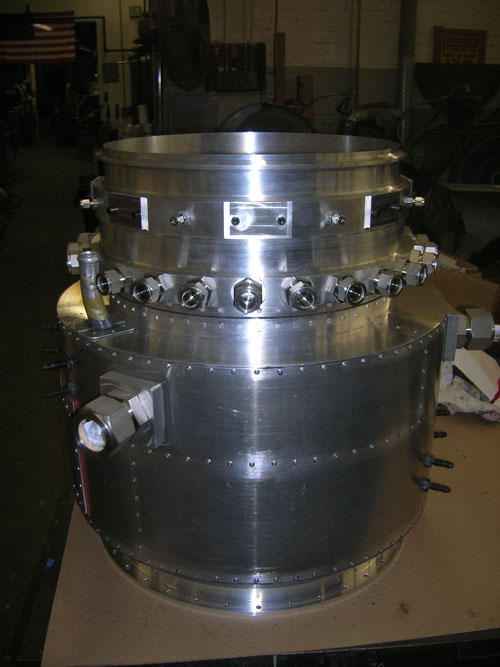

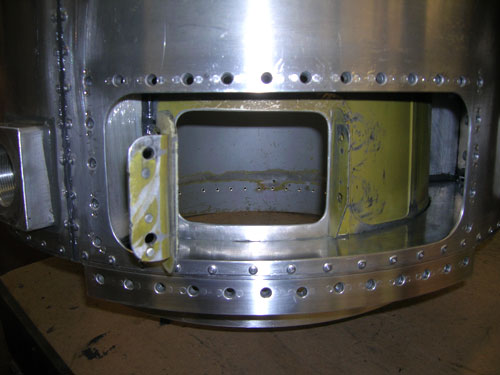

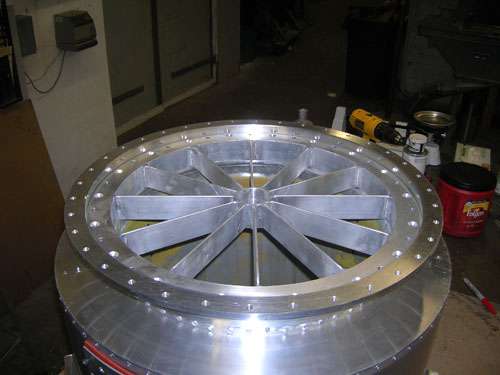

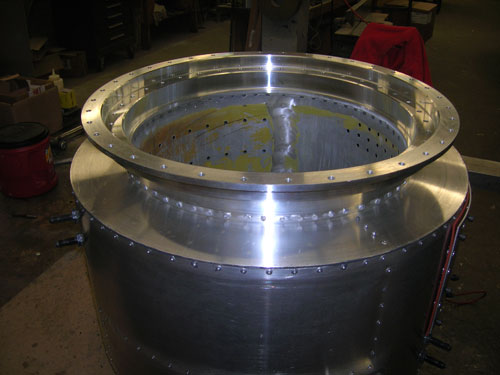

Sheet metal scavenge unit formed and fabricated around customer component at United.

Sheet metal scavenge unit formed and fabricated around customer component at United
Enlarge
Sheet metal scavenge unit formed and fabricated around customer component at United
Enlarge
Sheet metal scavenge unit formed and fabricated around customer component at United
Enlarge
Sheet metal scavenge unit formed and fabricated around customer component at United
Enlarge
